FPICST04-High Speed & Low Speed ADC User Manual

1.Introduction #

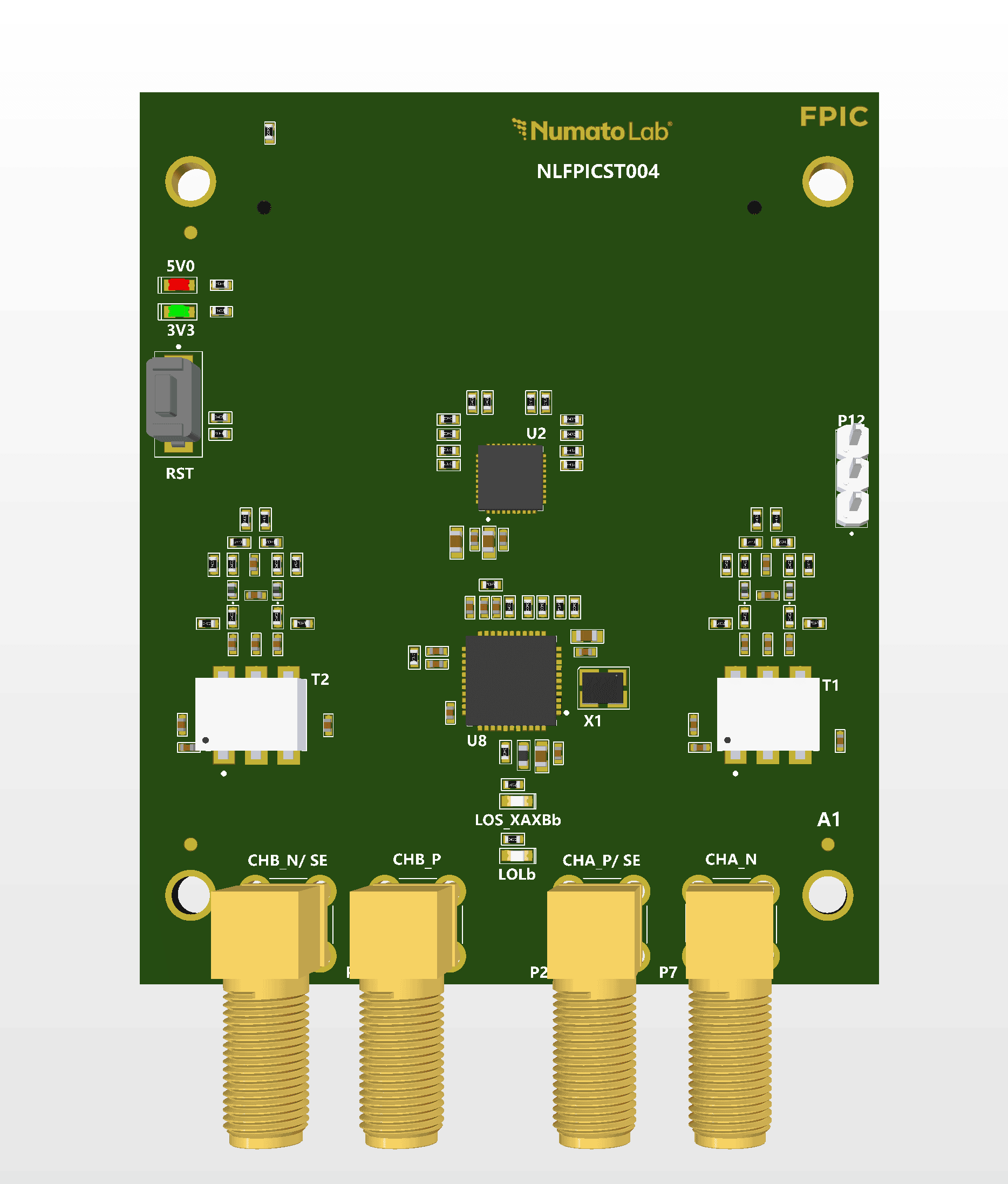

The FPICST04-ADC is a high-performance ADC expansion module designed for FPGA development boards that support the FPIC (FPGA Peripheral Interface Connector) standard. The module provides a flexible and modular solution for integrating high-speed analog-to-digital conversion capabilities into FPGA-based data acquisition and signal processing systems.

The FPICST04-ADC module supports two ADC variants to address different sampling-rate requirements:

ADC3664 – High-Speed Variant(125 MSPS): Designed for high-speed data acquisition applications requiring higher sampling rates and increased data throughput.
ADC3661 – Low-Speed Variant(10 MSPS): Intended for applications with lower sampling-rate requirements while maintaining the flexibility of the same expansion module platform.

The module interfaces with the FPGA development board through the standardized FPIC connector, providing the necessary electrical connections for ADC data transfer, clocking, configuration, and control signals. This standardized interface enables compatibility with supported FPGA platforms without requiring board-specific modifications to the ADC module.

Was this helpful? Yes No

Suggest edit

2.Applications #

High-speed analog data acquisition.
Real-time digital signal processing.
Analog waveform monitoring and analysis.
FPGA-based test and measurement systems.
Communication signal acquisition and processing.
Industrial sensor monitoring.
Continuous analog data logging.
FPGA-based embedded data acquisition systems.

Was this helpful? Yes No

Suggest edit

3.Features #

Dual ADC Support: Accommodates ADC3664 (high-speed variant) and ADC3661 (low-speed variant).
FPIC ST Interface: Provides a standardized FPIC connector for interfacing with compatible FPGA boards.
Dual Analog Input Channels: Supports two independent analog input channels (CH-A and CH-B).
SMA Connectors: Provides dedicated SMA connectors for analog signal inputs.
LVDS Data Interface: Supports LVDS outputs for high-speed ADC data transfer to the FPGA.
SPI Configuration: Enables ADC configuration and control through the SPI interface.
Clock Generation: Incorporates the SI5340A clock generator for generating the required ADC sampling and digital clock signals.
I2C Interface: Provides I2C communication between the FPGA and the clock generator.
EEPROM Support: Includes an onboard EEPROM for module identification and configuration information.
Modular Design: Enables integration with compatible FPGA platforms through the standardized FPIC interface.

Was this helpful? Yes No

Suggest edit

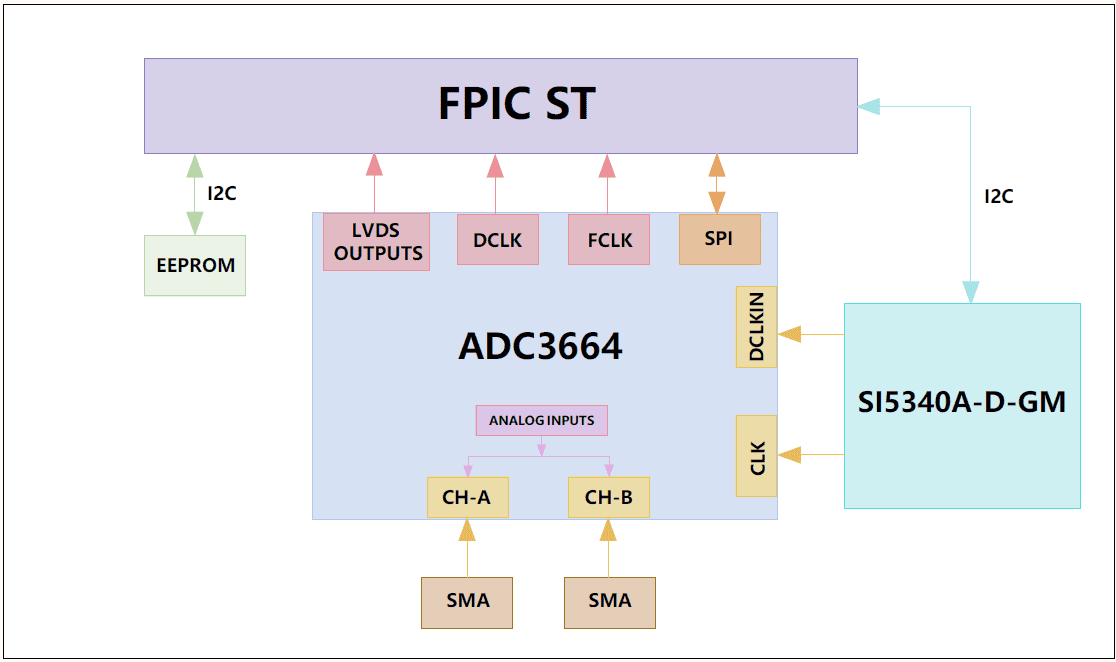

4.Functional Block Diagram #

Was this helpful? Yes No

Suggest edit

5.Connection Diagram #

6.Connection Details #

SL No.	Signal	FPIC Pin Location	Signal Detail
1	DCLK_P	IO0_P/CLK0_P	ADC Data Clock+ → FPGA
2	DCLK_N	IO0_N/CLK0_N	ADC Data Clock- → FPGA
3	FCLK_P	IO1_P/CLK1_P	ADC Frame Clock+ → FPGA
4	FCLK_N	IO1_N/CLK1_N	ADC Frame Clock- → FPGA
5	DA0_P	IO2_P	ADC Channel A Data Lane 0+
6	DA0_N	IO2_N	ADC Channel A Data Lane 0-
7	DA1_P	IO3_P	ADC Channel A Data Lane 1+
8	DA1_N	IO3_N	ADC Channel A Data Lane 1-
9	DB0_P	IO4_P	ADC Channel B Data Lane 0+
10	DB0_N	IO4_N	ADC Channel B Data Lane 0-
11	DB1_P	IO5_P	ADC Channel B Data Lane 1+
12	DB1_N	IO5_N	ADC Channel B Data Lane 1-
13	SDIO	IO6_P	ADC SPI Data I/O
14	SEN	IO6_N	ADC SPI Chip Select (CS)
15	SCLK	IO7_P	ADC SPI Clock
16	SDI	IO7_N	ADC SPI Data Input
17	PDN/SYNC	IO8_P	ADC Power-Down / Synchronization Control
18	RESET	IO8_N	ADC Reset Control
19	CLOCK_SCLK	IO9_P	Clock Generator I²C SCL
20	CLOCK_SDA	IO9_N	Clock Generator I²C SDA
21	GA0	GA0	EEPROM Address Select GA0
22	GA1	GA1	EEPROM Address Select GA1
23	SCL	SCL	EEPROM I²C SCL
24	SDA	SDA	EEPROM I²C SDA

Was this helpful? Yes No

Suggest edit

7.Technical Specification #

SL No.	Parameter	Value	Unit
1	Module Name	FPICST04-High Speed & Low Speed ADC Module
2	ADC Support	ADC3664 / ADC3661
3	ADC Channels	2 (CH-A, CH-B)	Channels
4	Analog Input Connector	SMA
5	Connector Standard	FPIC-ST
6	ADC Data Interface	LVDS
7	ADC Configuration Interface
8	Clock Generator	SI5340A
9	Clock Generator Interface	I²C
10	EEPROM	24AA025E64T-I/SN
11	EEPROM Capacity	2	Kbit
