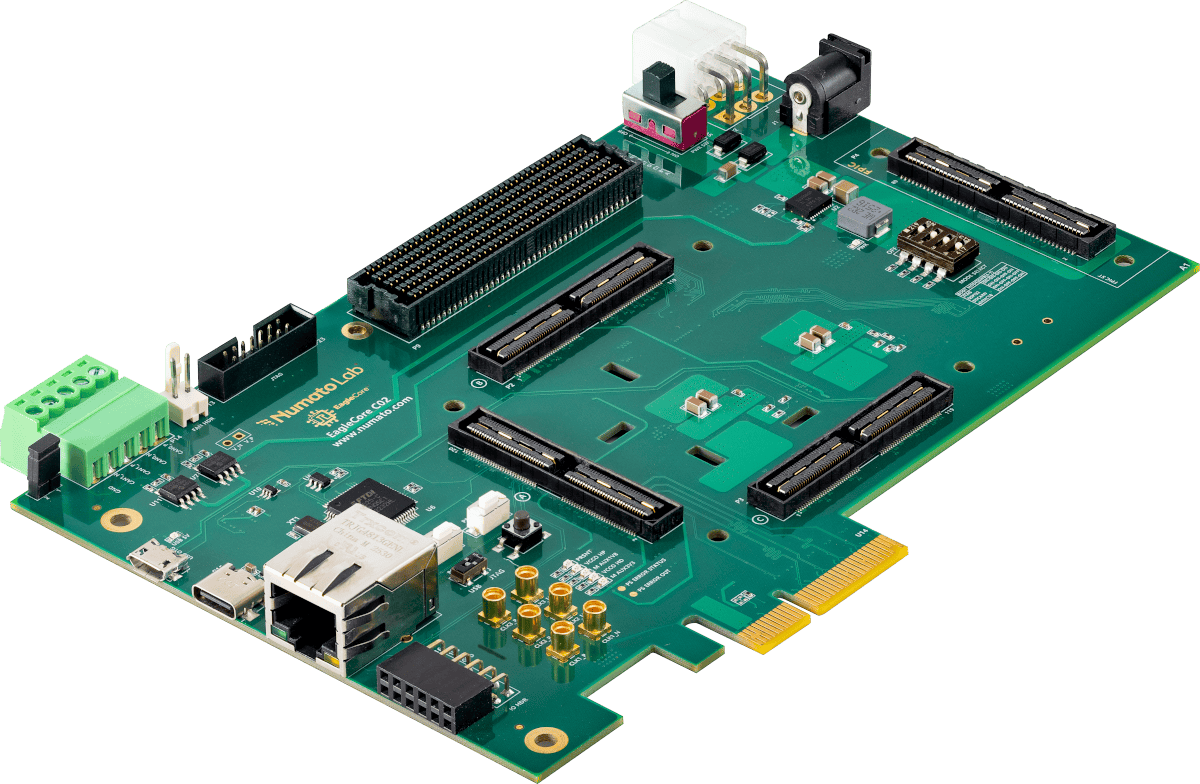

1.Introduction

The EagleCore C02 carrier is equipped with 3× Q-pair differential mezzanine connectors, enabling compatibility with various AMD System-on-Module (SoM) solutions such as the EagleCore ZU-Plus MPSoC SoM. The carrier introduces FPIC (FPGA Peripheral Interface Connector), a new I/O expansion interface developed by Numato Lab, designed to provide flexible and scalable peripheral connectivity. The board includes a single FPIC interface, where the FPIC standard connector is intended for general-purpose peripheral expansion.

The carrier board integrates a comprehensive set of onboard features to enhance flexibility and ease of use. These include a PCIe x4 connector for high-speed expansion, and an SD card slot for data and program storage. Additional interfaces include a fan header for thermal management, two PMOD connectors, USB OTG support, two CAN headers, MIO header and SMA connectors. The board also features a USB Type-C connector for UART communication and USB-based programming, along with a dedicated JTAG header for debugging and development.

Was this helpful? Yes No Suggest edit

1.1.Board Features

Three Q-pair differential mezzanine connectors for high-speed SoM interfacing
FTDI FT2232H for FPGA-to-host communication
RJ45 Ethernet jack for network connectivity
USB Type-C connector for UART communication and programming
USB Micro-B connector with OTG support
PCIe x4 male header for high-speed expansion and peripheral connectivity
12V DC power input
12V fan header for thermal management
AMD-compatible JTAG header for programming and debugging
MIO header for access to processor I/O signals
FPIC ST connector for user-defined peripheral expansion
FMC connector supporting up to 154 user I/O’s
FMC HPC connector with support for up to 4 SERDES lanes
Two CAN interface headers for automotive and industrial communication
Three SMA connectors for supplying external reference clocks to GT transceiver banks, enabling flexible clocking based on peripheral requirements

Was this helpful? Yes No Suggest edit

2.How to use EagleCore Carrier

The following sections describe how to use this module in detail.

Was this helpful? Yes No Suggest edit

2.1.Hardware Accessories Required

In addition to the module, you may require the accessories listed below for a convenient and expedited installation:

12 V DC Power Supply.
USB Type-C Cable.
AMD Platform Cable USB II compatible JTAG programmer (Optional).
EagleCore SoM module.

Was this helpful? Yes No Suggest edit

2.2.Boards Supported

Numato Lab EagleCore ZU-Plus MPSoC SOM.

Was this helpful? Yes No Suggest edit

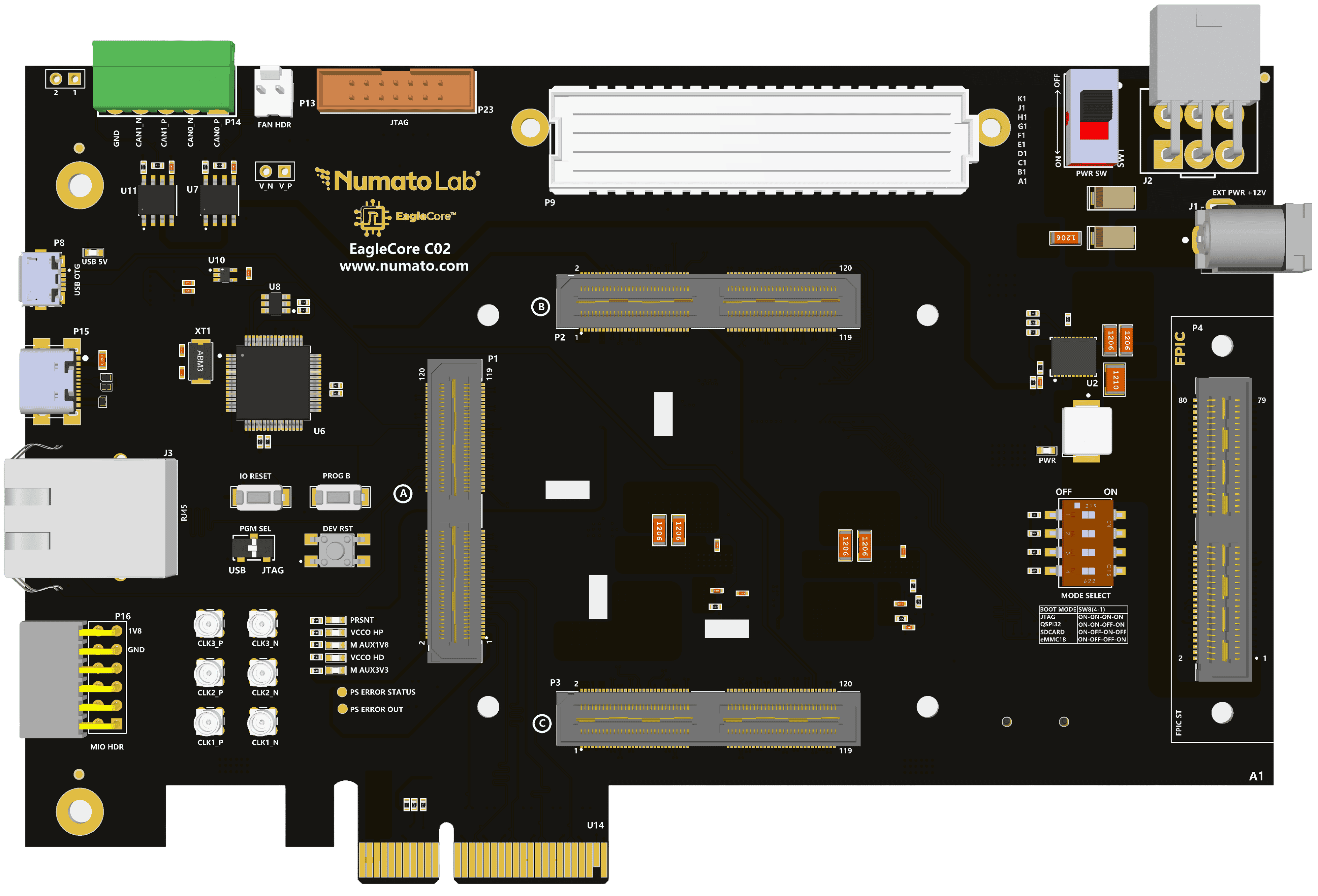

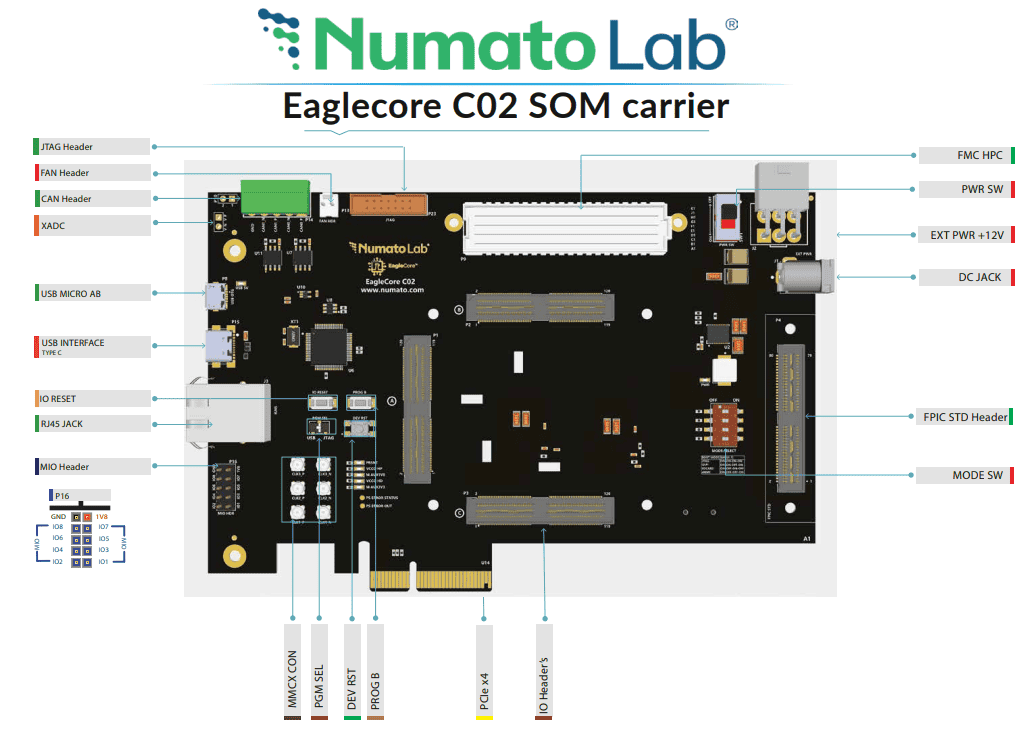

2.3.Wiring Diagram

Note: The MicroSD Card slot and RTC Coin cell battery are kept below the carrier.

Was this helpful? Yes No Suggest edit

2.4.DC Power Supply

The EagleCore SOM Carrier is configured to use power from the DC power supply by connecting it to the

External DC Jack (J1). The external power supply should be in the range of +12V 5A.

Was this helpful? Yes No Suggest edit

2.5.Power Switch

The Power Switch (SW1)is used to switch on/off the board. Sliding it to ON to supply power from the External DC Jack to the board. Sliding it to OFF to power off the board.

Was this helpful? Yes No Suggest edit

2.6.Power LED

The EagleCore SOM Carrier has a power LED (PWR) that will illuminate when the board receives sufficient power during startup.

Was this helpful? Yes No Suggest edit

2.7.Reset

The EagleCore SOM Carrier has a push button switch (SW2) for resetting the entire system. This pin is connected to the system reset pin of the FPGA.

Was this helpful? Yes No Suggest edit

2.8.PROGB

The EagleCore SOM Carrier includes a dedicated switch (S1)for PROGB functionality, which is connected to the corresponding PROGB pin on the FPGA.

Was this helpful? Yes No Suggest edit

2.9.Gigabit Ethernet Port

The EagleCore SOM Carrier supports 1 Gigabit ethernet communication lanes (J3)which support 10/100/1000Mbps Ethernet interface. It also has an additional Activity and Link LED for providing visual indication for the user about the status of the ethernet. The Ethernet LINK LED indicates the presence of a network connection when illuminated, while the Gigabit Ethernet ACTIVITY LED signals active data transmission or reception over the network.

Was this helpful? Yes No Suggest edit

2.10.USB Interface

The onboard USB connector (P15) helps a PC/Linux/Mac computer to communicate with this module.

Use a USB type C cable to connect with a PC. This port will act as both JTAG and UART interface.

Was this helpful? Yes No Suggest edit

2.11.USB 2.0 OTG Connector

The EagleCore SOM Carrier provides a USB 2.0 OTG interface (P8) and can be accessed using a Micro-B

connector. USB OTG supports both Host, Device, and OTG modes based on the configuration made in the USB ID pin. An LED (USB_5V) is connected with the USB_5V as an indication of the presence of the VBUS in the USB pin.

Was this helpful? Yes No Suggest edit

2.12.MicroSD Card

The EagleCore SOM Carrier supports a microSD card slot (P12), offering additional non-volatile

memory storage capacity. It operates in 3.3V and offers a compact and removable storage solution, making it ideal for storing data that exceeds the internal memory capacity of the FPGA. FPGAs can use microSD cards to store boot images or configuration data, which are loaded into the FPGA at startup.

Was this helpful? Yes No Suggest edit

2.13.Mode Selection DIP Switches

EagleCore SOM Carrier has DIP switches (SW8) for changing the boot configuration of the FPGA based on the required functionality. Users can utilize all four pins or only the necessary ones, leaving the remaining MODE pins unconnected.

EagleCore ZU-Plus SOM

The boot configuration of the EagleCore ZU+ SOM will be based on the below configuration of switches:

	MODE2	MODE1	MODE0
JTAG	0	0	0
QSPI (32Bit)	0	1	0
SD Card(2.0)	1	0	1
EMMC (1.8V)	1	1	0

Was this helpful? Yes No Suggest edit

2.14.RTC Coin Cell Holder

The EagleCore SOM Carrier has a Coin Cell Holder (BT1) to support 1.8V coin cell that will support

backup voltage for RTC when main power supply is off. RTC maintains accurate timekeeping through these battery-backup. The battery should be kept in the carrier board for providing voltage if the main power is off.

Was this helpful? Yes No Suggest edit

2.15.CAN Header

The EagleCore SOM Carrier has 2 CAN (P14)headers dedicated for CAN communication interfaces.

Pin No.	Signal Name	Function
1	CANH	CAN0_P
2	CANL	CAN0_N
3	CANH	CAN1_P
4	CANL	CAN1_N

Was this helpful? Yes No Suggest edit

2.16.JTAG Header

EagleCore SOM Carrier supports standard JTAG Headers for programming and debugging purposes.

JTAG 2 – AMD (P23)

Was this helpful? Yes No Suggest edit

2.17.User Defined LEDs and Push Buttons

EagleCore SOM Carrier provides 4 user-defined LEDs.

EagleCore SOM Carrier provides 4 Push buttons (S2, S3, S4, S5) for user-defined purposes.

Was this helpful? Yes No Suggest edit

2.18.User Defined Switches

The EagleCore SOM Carrier has 2 dedicated switches (SW5 & SW6) for user defined purpose.

Was this helpful? Yes No Suggest edit

2.19.PGM_SEL switch

The EagleCore SOM Carrier supports both JTAG and FTDI programming for AMD FPGA boards. The configuration can be changes using PGM_SEL switch (SW4). By default, switch SW4 is in the ON position for JTAG programming configuration. When switched to the OFF position, it will configure the board for FTDI programming.

Was this helpful? Yes No Suggest edit

2.20.100 MHz Oscillator

The EagleCore SOM Carrier provides an additional 100 MHz LVDS oscillator for user defined purposes.

Was this helpful? Yes No Suggest edit

2.21.MIPI Header

The EagleCore SOM Carrier has a dedicated lines for MIPI CSI-2 connector (P24). MIPI CSI-2 is a standard interface for connecting cameras to FPGAs, enabling high-speed, efficient, and scalable image and video data transmission.

Was this helpful? Yes No Suggest edit

2.22.XADC Header

The EagleCore SOM Carrier have dedicated header (P17) for differential analog input.

Was this helpful? Yes No Suggest edit

2.23.SMA Connectors

The EagleCore SOM Carrier supports 3 SMA connectors for differential transceiver clocks. Users can

utilize this connector to meet additional transceiver clock requirements.

Product No.	Signal Name
P11	CLK_01_P
P18	CLK_01_N
P19	CLK_02_P
P20	CLK_02_N
P21	CLK_03_P
P22	CLK_03_N

Was this helpful? Yes No Suggest edit

2.24.FMC Header

EagleCore SOM Carrier features a high speed, high pin-count FMC connector which can be used to provide additional features and capabilities to it using custom or commercial-off-the-shelf daughter boards. Apart from IOs, 8 GTX lanes are available via FMC connector for custom purposes.

FMC BANKS A TO E

A	FMC Pin Name	FPGA Pin	B	FMC Pin Name	C	FMC Pin Name	FPGA Pin	D	FMC Pin Name	FPGA Pin	E	FMC Pin Name	FPGA Pin
A1	GND		B1	GND	C1	GND		D1	PG_C2M		E1	GND
A2	FMC_DP1_M2C_P	V2	B2	GND	C2	FMC_DP0_C2M_P	W4	D2	GND		E2	FMC_HA01_CC_P	W8
A3	FMC_DP1_M2C_N	V1	B3	GND	C3	FMC_DP0_C2M_N	W3	D3	GND		E3	FMC_HA01_CC_N	Y8
A4	GND		B4	NC	C4	GND		D4	FMC_GBTCLK0_M2C_P	V6	E4	GND
A5	GND		B5	NC	C5	GND		D5	FMC_GBTCLK0_M2C_N	V5	E5	GND
A6	FMC_DP2_M2C_P	T2	B6	GND	C6	FMC_DP0_M2C_P	Y2	D6	GND		E6	FMC_HA05_P	H4
A7	FMC_DP2_M2C_N	T1	B7	GND	C7	FMC_DP0_M2C_N	Y1	D7	GND		E7	FMC_HA05_N	H3
A8	GND		B8	NC	C8	GND		D8	FMC_LA01_CC_P	G1	E8	GND
A9	GND		B9	NC	C9	GND		D9	FMC_LA01_CC_N	F1	E9	FMC_HA09_P	M6
A10	FMC_DP3_M2C_P	P2	B10	GND	C10	FMC_LA06_P	B4	D10	GND		E10	FMC_HA09_N	L5
A11	FMC_DP3_M2C_N	P1	B11	GND	C11	FMC_LA06_N	A4	D11	FMC_LA05_P	C3	E11	GND
A12	GND		B12	NC	C12	GND		D12	FMC_LA05_N	C2	E12	FMC_HA13_P	L3
A13	GND		B13	NC	C13	GND		D13	GND		E13	FMC_HA13_N	L2
A14	NC		B14	GND	C14	FMC_LA10_P	F8	D14	FMC_LA09_P	C8	E14	GND
A15	NC		B15	GND	C15	FMC_LA10_N	E8	D15	FMC_LA09_N	B8	E15	FMC_HA16_P	M8
A16	GND		B16	NC	C16	GND		D16	GND		E16	FMC_HA16_N	L8
A17	GND		B17	NC	C17	GND		D17	FMC_LA13_P	E5	E17	GND
A18	NC		B18	GND	C18	FMC_LA14_P	G3	D18	FMC_LA13_N	D5	E18	FMC_HA20_P	L7
A19	NC		B19	GND	C19	FMC_LA14_N	F3	D19	GND		E19	FMC_HA20_N	L6
A20	GND		B20	NC	C20	GND		D20	FMC_LA17_CC_P	E12	E20	GND
A21	GND		B21	NC	C21	GND		D21	FMC_LA17_CC_N	D11	E21	NC
A22	FMC_DP1_C2M_P	U4	B22	GND	C22	FMC_LA18_CC_P	D12	D22	GND		E22	NC
A23	FMC_DP1_C2M_N	U3	B23	GND	C23	FMC_LA18_CC_N	C12	D23	FMC_LA23_P	H11	E23	GND
A24	GND		B24	NC	C24	GND		D24	FMC_LA23_N	G10	E24	NC
A25	GND		B25	NC	C25	GND		D25	GND		E25	NC
A26	FMC_DP2_C2M_P	R4	B26	GND	C26	FMC_LA27_P	K13	D26	FMC_LA26_P	J12	E26	GND
A27	FMC_DP2_C2M_N	R3	B27	GND	C27	FMC_LA27_N	K12	D27	FMC_LA26_N	H12	E27	NC
A28	GND		B28	NC	C28	GND		D28	GND		E28	NC
A29	GND		B29	NC	C29	GND		D29	NC		E29	GND
A30	FMC_DP3_C2M_P	N4	B30	GND	C30	SCL_FMC	AE15	D30	NC		E30	NC
A31	FMC_DP3_C2M_N	N3	B31	GND	C31	SDA_FMC	AE14	D31	NC		E31	NC
A32	GND		B32	NC	C32	GND		D32	3V3AUX		E32	GND
A33	GND		B33	NC	C33	GND		D33	NC		E33	NC
A34	NC		B34	GND	C34	GND		D34	NC		E34	NC
A35	NC		B35	GND	C35	P12V0		D35	P3V3		E35	GND
A36	GND		B36	NC	C36	GND		D36	P3V3		E36	NC
A37	GND		B37	NC	C37	P12V0		D37	GND		E37	NC
A38	NC		B38	GND	C38	GND		D38	P3V3		E38	GND
A39	NC		B39	GND	C39	P3V3		D39	GND		E39	VADJ
A40	GND		B40	NC	C40	GND		D40	P3V3		E40	GND

FMC BANKS F TO K

F	FMC Pin Name	FPGA Pin	G	FMC Pin Name	FPGA Pin	H	FMC Pin Name	FPGA Pin	J	FMC Pin Name	FPGA Pin	K	FMC Pin Name	FPGA Pin
F1	PG_M2C		G1	GND		H1	NC		J1	GND		K1	NC
F2	GND		G2	NC		H2	PRSNT_M2C_L	AG13	J2	NC		K2	GND
F3	GND		G3	NC		H3	GND		J3	NC		K3	GND
F4	FMC_HA00_CC_P	L1	G4	GND		H4	NC		J4	GND		K4	NC
F5	FMC_HA00_CC_N	K1	G5	GND		H5	NC		J5	GND		K5	NC
F6	GND		G6	FMC_LA00_CC_P	C1	H6	GND		J6	FMC_HA03_P	U9	K6	GND
F7	FMC_HA04_P	R7	G7	FMC_LA00_CC_N	B1	H7	FMC_LA02_P	A2	J7	FMC_HA03_N	V9	K7	FMC_HA02_P	U8
F8	FMC_HA04_N	T7	G8	GND		H8	FMC_LA02_N	A1	J8	GND		K8	FMC_HA02_N	V8
F9	GND		G9	FMC_LA03_P	E1	H9	GND		J9	FMC_HA07_P	R6	K9	GND
F10	FMC_HA08_P	J1	G10	FMC_LA03_N	D1	H10	FMC_LA04_P	B3	J10	FMC_HA07_N	T6	K10	FMC_HA06_P	R8
F11	FMC_HA08_N	H1	G11	GND		H11	FMC_LA04_N	A3	J11	GND		K11	FMC_HA06_N	T8
F12	GND		G12	FMC_LA08_P	C9	H12	GND		J12	FMC_HA11_P	K4	K12	GND
F13	FMC_HA12_P	J7	G13	FMC_LA08_N	B9	H13	FMC_LA07_P	A9	J13	FMC_HA11_N	K3	K13	FMC_HA10_P	K2
F14	FMC_HA12_N	H7	G14	GND		H14	FMC_LA07_N	A8	J14	GND		K14	FMC_HA10_N	J2
F15	GND		G15	FMC_LA12_P	G5	H15	GND		J15	FMC_HA14_P	N7	K15	GND
F16	FMC_HA15_P	N9	G16	FMC_LA12_N	F5	H16	FMC_LA11_P	E9	J16	FMC_HA14_N	N6	K16	FMC_HA17_CC_P	J5
F17	FMC_HA15_N	N8	G17	GND		H17	FMC_LA11_N	D9	J17	GND		K17	FMC_HA17_CC_N	J4
F18	GND		G18	FMC_LA16_P	E10	H18	GND		J18	FMC_HA18_P	K8	K18	GND
F19	FMC_HA19_P	K9	G19	FMC_LA16_N	D10	H19	FMC_LA15_P	G8	J19	FMC_HA18_N	K7	K19	FMC_HA21_P	P7
F20	FMC_HA19_N	J9	G20	GND		H20	FMC_LA15_N	F7	J20	GND		K20	FMC_HA21_N	P6
F21	GND		G21	FMC_LA20_P	B11	H21	GND		J21	FMC_HA22_P	J6	K21	GND
F22	NC		G22	FMC_LA20_N	A10	H22	FMC_LA19_P	A12	J22	FMC_HA22_N	H6	K22	NC
F23	NC		G23	GND		H23	FMC_LA19_N	A11	J23	GND		K23	NC
F24	GND		G24	FMC_LA22_P	G11	H24	GND		J24	NC		K24	GND
F25	NC		G25	FMC_LA22_N	F10	H25	FMC_LA21_P	C11	J25	NC		K25	NC
F26	NC		G26	GND		H26	FMC_LA21_N	B10	J26	GND		K26	NC
F27	GND		G27	FMC_LA25_P	F12	H27	GND		J27	NC		K27	GND
F28	NC		G28	FMC_LA25_N	F11	H28	FMC_LA24_P	J11	J28	NC		K28	NC
F29	NC		G29	GND		H29	FMC_LA24_N	J10	J29	GND		K29	NC
F30	GND		G30	FMC_LA29_P	J20	H30	GND		J30	NC		K30	GND
F31	NC		G31	FMC_LA29_N	K20	H31	FMC_LA28_P	J15	J31	NC		K31	NC
F32	NC		G32	GND		H32	FMC_LA28_N	K15	J32	GND		K32	NC
F33	GND		G33	FMC_LA31_P	J16	H33	GND		J33	NC		K33	GND
F34	NC		G34	FMC_LA31_N	L16	H34	FMC_LA30_P	G16	J34	NC		K34	NC
F35	NC		G35	GND		H35	FMC_LA30_N	F16	J35	GND		K35	NC
F36	GND		G36	NC		H36	GND		J36	NC		K36	GND
F37	NC		G37	NC		H37	NC		J37	NC		K37	NC
F38	NC		G38	GND		H38	NC		J38	GND		K38	NC
F39	GND		G39	VADJ		H39	GND		J39	VIO_B_M2C		K39	GND
F40	VADJ		G40	GND		H40	VADJ		J40	GND		K40	VIO_B_M2C

Was this helpful? Yes No Suggest edit

2.24.1.FMC Technical Specifications

Parameter	Value	Unit
Power supply voltage	12	V
Number of positions	400
Number of rows	10
Height above the board	6.55	mm
Pitch	1.27	mm
Number of connectors	1
FMC connector	ASP-134486-01

Was this helpful? Yes No Suggest edit

2.24.2.FMC Present LED

The EagleCore SOM Carrier has a dedicated pin for the FMC present signal, which is connected to LED (D5). This LED serves as an indicator for the user to verify that the FMC Mezzanine Module is inserted properly. If the FMC is properly inserted, the LED will illuminate.

Was this helpful? Yes No Suggest edit

2.25.SOM Connector Header

Connector P1

Pin No.	Signal Name	Pin Name	Pin No.	Signal Name	Pin Name
1	VDD1V8	M_AUX1V8	2	VCC3V3	M_AUX3V3
3	VDD1V8	M_AUX1V8	4	VCC3V3	M_AUX3V3
5	GND	Ground	6	GND	Ground
7	CLK0_P	PCIe_REFCLK_P	8	CLK1_P	CLK_01_P
9	CLK0_N	PCIe_REFCLK_N	10	CLK1_N	CLK_01_N
11	GND	Ground	12	GND	Ground
13	RX0_P	PCIe_RX0_P	14	TX0_P	PCIe_TX0_P
15	RX0_N	PCIe_RX0_N	16	TX0_N	PCIe_TX0_N
17	GND	Ground	18	GND	Ground
19	RX1_P	PCIe_RX1_P	20	TX1_P	PCIe_TX1_P
21	RX1_N	PCIe_RX1_R	22	TX1_N	PCIe_TX1_N
23	GND	Ground	24	GND	Ground
25	RX2_P	PCIe_RX2_P	26	TX2_P	PCIe_TX2_P
27	RX2_N	PCIe_RX2_N	28	TX2_N	PCIe_TX2_N
29	GND	Ground	30	GND	Ground
31	RX3_P	PCIe_RX3_P	32	TX3_P	PCIe_TX3_P
33	RX3_N	PCIe_RX3_N	34	RX3_N	PCIe_TX3_N
35	GND	Ground	36	GND	Ground
37	CLK2_P	CLK_02_P	38	CLK3_P	CLK_03_P
39	CLK2_N	CLK_02_N	40	CLK3_N	CLK_03_N
41	GND	Ground	42	GND	Ground
43	RX4_P	FMC_DP0_M2C_P	44	TX4_P	FMC_DP0_C2M_P
45	RX4_N	FMC_DP0_M2C_N	46	TX4_N	FMC_DP0_C2M_N
47	GND	Ground	48	GND	Ground
49	RX5_P	FMC_DP1_M2C_P	50	TX5_P	FMC_DP1_C2M_P
51	RX5_N	FMC_DP1_M2C_N	52	TX5_N	FMC_DP1_C2M_N
53	GND	Ground	54	GND	Ground
55	RX6_P	FMC_DP2_M2C_P	56	TX6_P	FMC_DP2_C2M_P
57	RX6_N	FMC_DP2_M2C_N	58	TX6_N	FMC_DP2_C2M_N
59	GND	Ground	60	GND	Ground
61	RX7_P	FMC_DP3_M2C_P	62	TX7_P	FMC_DP3_C2M_P
63	RX7_N	FMC_DP3_M2C_N	64	TX7_N	FMC_DP3_C2M_N
65	GND	Ground	66	GND	Ground
67	CLK4_P	FMC_GBTCLK0_M2C_P	68	LED/LINK	LED/Link
69	CLK4_N	FMC_GBTCLK0_M2C_N	70	LED/ACT	LED1/Activity
71	GND	Ground	72	GND	Ground
73	GPHY_A1_P	GPHY_TXRX_A1_P	74	GPHY_C1_P	GPHY_TXRX_A0_P
75	GPHY_A1_N	GPHY_TXRX_A1_N	76	GPHY_C1_N	GPHY_TXRX_A0_N
77	GND	Ground	78	GND	Ground
79	GPHY_B1_P	GPHY_TXRX_B1_P	80	GPHY_D1_P	GPHY_TXRX_B0_P
81	GPHY_B1_N	GPHY_TXRX_B1_N	82	GPHY_D1_N	GPHY_TXRX_B0_N
83	GND	Ground	84	GND	Ground
85	CAN0_TX	CAN0 _TX	86	CAN1_TX	GPHY_TXRX_C0_P
87	CAN0_RX	CAN0_RX	88	CAN1_RX	GPHY_TXRX_C0_N
89	GND	Ground	90	GND	Ground
91	PS_ERROR_STATUS	PS_ERROR_STATUS	92	V_P	GPHY_TXRX_D0_P
93	PS_ERROR_OUT	PS_ERROR_OUT	94	V_N	GPHY_TXRX_D0_N
95	VBAT	VBAT	96	PROG_B	LED0/Link
97	MIO	PCIe _PERST#	98	PRSNT_L	LED0/Activity
99	GND	Ground	100	GND	Ground
101	IO0_P	FMC_LA28_P	102	IO1_P	FMC_LA29_P
103	IO0_N	FMC_LA28_N	104	IO1_N	FMC_LA29_N
105	IO2_P	FMC_LA30_P	106	IO3_P	FMC_LA31_P
107	IO2_N	FMC_LA30_N	108	IO3_N	FMC_LA31_N
109	GND	Ground	110	GND	Ground
111	IO4_P	SW0	112	IO5_P	LED_0
113	IO4_N	SW1	114	IO5_N	LED_1
115	IO6_P	SW2	116	IO7_P	LED_2
117	IO6_N	SW3	118	IO7_N	LED_3
119	GND	Ground	120	GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground

Connector P2

Pin No.	Signal Name	Pin Name	Pin No.	Signal Name	Pin Name
1	5V0	5P0	2	5V0	5P0
3	5V0	5P0	4	5V0	5P0
5	5V0	5P0	6	5V0	5P0
7	GND	Ground	8	GND	Ground
9	GND	Ground	10	GND	Ground
11	VCC_IO	VCC_IO_HP	12	VCC_IO	M_AUX1V8
13	VCC_IO	VCC_IO_HP	14	VCC_IO	M_AUX1V8
15	GND	Ground	16	GND	Ground
17	IO0_P	FMC_LA00_CC_P	18	IO1_P	FMC_LA01_CC_P
19	IO0_N	FMC_LA00_CC_N	20	IO1_N	FMC_LA01_CC_N
21	IO2_P	FMC_LA02_P	22	IO3_P	FMC_LA03_P
23	IO2_N	FMC_LA02_N	24	IO3_N	FMC_LA03_N
25	GND	Ground	26	GND	Ground
27	IO4_P	FMC_LA04_P	28	IO5_P	FMC_LA05_P
29	IO4_N	FMC_LA04_N	30	IO5_N	FMC_LA05_N
31	IO6_P	FMC_LA06_P	32	IO7_P	FMC_LA07_P
33	IO6_N	FMC_LA06_N	34	IO7_N	FMC_LA07_N
35	GND	Ground	36	GND	Ground
37	IO8_P	FMC_LA08_P	38	IO9_P	FMC_LA09_P
39	IO8_N	FMC_LA08_N	40	IO9_N	FMC_LA09_N
41	IO10_P	FMC_LA10_P	42	IO11_P	FMC_LA11_P
43	IO10_N	FMC_LA10_N	44	IO11_N	FMC_LA11_N
45	GND	Ground	46	GND	Ground
47	IO12_P	FMC_LA12_P	48	IO13_P	FMC_LA13_P
49	IO12_N	FMC_LA12_N	50	IO13_N	FMC_LA13_N
51	IO14_P	MIPI_L0_P	52	IO15_P	FMC_LA14_P
53	IO14_N	MIPI_L0_N	54	IO15_N	FMC_LA14_N
55	GND	Ground	56	GND	Ground
57	IO16_P	MIPI_L1_P	58	IO17_P	FMC_LA15_P
59	IO16_N	MIPI_L1_N	60	IO17_N	FMC_LA15_N
61	IO18_P	MIPI_CLK_P	62	IO19__P	HDMI_TX_CLK_P
63	IO18_N	MIPI_CLK_N	64	IO19_N	HDMI_TX_CLK_N
65	GND	Ground	66	GND	Ground
67	IO20_P	HDMI_TX0_P	68	IO21_P	HDMI_TX2_P
69	IO20_N	HDMI_TX0_N	70	IO21_N	HDMI_TX2_N
71	IO22_P	HDMI_TX1_P	72	IO23_P	FMC_HA01_CC_P
73	IO22_N	HDMI_TX1_N	74	IO23_N	FMC_HA01_CC_N
75	GND	Ground	76	GND	Ground
77	IO24_P	FMC_HA00_CC_P	78	IO25_P	FMC_HA03_P
79	IO24_N	FMC_HA00_CC_N	80	IO25_N	FMC_HA03_N
81	IO26_P	FMC_HA02_P	82	IO27_P	FMC_HA05_P
83	IO26_N	FMC_HA02_N	84	IO27_N	FMC_HA05_N
85	GND	Ground	86	GND	Ground
87	IO28_P	FMC_HA04_P	88	IO29_P	FMC_HA07_P
89	IO28_N	FMC_HA04_N	90	IO29_N	FMC_HA07_N
91	IO30_P	FMC_HA06_P	92	IO31_P	FMC_HA09_P
93	IO30_N	FMC_HA06_N	94	IO31_N	FMC_HA09_N
95	GND	Ground	96	GND	Ground
97	IO32_P	FMC_HA08_P	98	IO33_P	FMC_HA11_P
99	IO32_N	FMC_HA08_N	100	IO33_N	FMC_HA11_N
101	IO32_P	FMC_HA10_P	102	IO35_P	FMC_HA13_P
103	IO32_N	FMC_HA10_N	104	IO35_N	FMC_HA13_N
105	GND	Ground	106	GND	Ground
107	IO36_P	FMC_HA12_P	108	IO37_P	FMC_HA14_P
109	IO36_N	FMC_HA12_N	110	IO37_N	FMC_HA14_N
111	SD_CLK	SD_CLK	112	SD_DATA0	SD_DATA0
113	SD_CMD	SD_CMD	114	SD_DATA1	SD_DATA1
115	UART_RXD	UART_RXD	116	SD_DATA2	SD_DATA2
117	UART_RXD	UART_RXD	118	SD_DATA3	SD_DATA3
119	GND	Ground	120	GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground

Connector P3

Pin No.	Signal Name	Pin Name	Pin No.	Signal Name	Pin Name
1	5V0	5P0	2	5V0	5P0
3	5V0	5P0	4	5V0	5P0
5	5V0	5P0	6	5V0	5P0
7	GND	Ground	8	GND	Ground
9	GND	Ground	10	GND	Ground
11	VDD3V3	M_AUX3V3	12	VCC_IO	VCC_IO_HD
13	VDD3V3	M_AUX3V3	14	VCC_IO	VCC_IO_HD
15	GND	Ground	16	GND	Ground
17	IO0_P	FMC_LA16_P	18	IO1_P	FMC_LA17_CC_P
19	IO0_N	FMC_LA16_N	20	IO1_N	FMC_LA17_CC_N
21	IO2_P	FMC_LA18_P	22	IO3_P	FMC_LA19_P
23	IO2_N	FMC_LA18_N	24	IO3_N	FMC_LA19_N
25	GND	Ground	26	GND	Ground
27	IO4_P	FMC_LA20_P	28	IO5_P	FMC_LA21_P
29	IO4_N	FMC_LA20_N	30	IO5_N	FMC_LA21_N
31	IO6_P	FMC_LA22_P	32	IO7_P	FMC_LA23_P
33	IO6_N	FMC_LA22_N	34	IO7_N	FMC_LA23_N
35	GND	Ground	36	GND	Ground
37	IO8_P	FMC_LA24_P	38	IO9_P	FMC_LA25_P
39	IO8_N	FMC_LA24_N	40	IO9_N	FMC_LA25_N
41	IO10_P	FMC_LA26_P	42	IO11_P	FMC_LA27_P
43	IO10_N	FMC_LA26_N	44	IO11_N	FMC_LA27_N
45	GND	Ground	46	GND	Ground
47	IO12_P	MIPI_PWUP	48	IO13_P	HDMI_TX_CEC
49	IO12_N	MIPI_GPIO	50	IO13_N	HDMI_TX_HOT
51	IO14_P	MIPI_SCL	52	IO15_P	HDMI_TX_SCL
53	IO14_N	MIPI_SDA	54	IO15_N	HDMI_TX_SDA
55	GND	Ground	56	GND	Ground
57	IO16_P	CONN0_D1	58	IO17_P	CONN0_D8
59	IO16_N	CONN0_D2	60	IO17_N	CONN0_D7
61	IO18_P	CONN0_D3	62	IO19_P	CONN0_D6
63	IO18_N	CONN0_D4	64	IO19_N	CONN0_D5
65	GND	Ground	66	GND	Ground
67	IO20_P	CONN1_D1	68	IO21_P	CONN1_D8
69	IO20_N	CONN1_D2	70	IO21_N	CONN1_D7
71	IO22_P	CONN1_D3	72	IO23_P	CONN1_D6
73	IO22_N	CONN1_D4	74	IO23_N	CONN1_D5
75	GND	Ground	76	GND	Ground
77	IO24_P	SCL_FMC	78	IO25_P	SWITCH1
79	IO24_N	SDA_FMC	80	IO25_N	SWITCH2
81	IO26_P	FMC_HA16_P	82	IO27_P	FMC_HA15_P
83	IO26_N	FMC_HA16_N	84	IO27_N	FMC_HA15_N
85	GND	Ground	86	GND	Ground
87	IO28_P	FMC_HA18_P	88	IO29_P	FMC_HA17_CC_P
89	IO28_N	FMC_HA18_N	90	IO29_N	FMC_HA17_CC_N
91	IO30_P	FMC_HA20_P	92	IO31_P	FMC_HA19_P
93	IO30_N	FMC_HA20_N	94	IO31_N	FMC_HA19_N
95	GND	Ground	96	GND	Ground
97	IO32_P	FMC_HA22_P	98	IO33_P	FMC_HA21_P
99	IO32_N	FMC_HA22_N	100	IO33_N	FMC_HA21_N
101	GND	Ground	102	GND	Ground
103	MODE 0	MODE 0	104	MODE 2	MODE 2
105	MODE 1	MODE 1	106	MODE 3	MODE 3
107	USB_DN	OTG_D_N	108	USB_ID	OTG_USB_ID
109	USB_DP	OTG_D_P	110	USB_5V	OTG_USB_5V
111	JTAG_TDI	FPGA_TDI	112	JTAG_TDO	FPGA_TDO
113	JTAG_TMS	FPGA_TMS	114	JTAG_TCK	FPGA_TCK
115	IO_RESET	IO_RESET	116	DEV_RST	DEV_RST
117	PG_M2C	PG_GOOD	118	PG_C2M	PG_ALL
119	GND	Ground	120	GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground
	GND	Ground		GND	Ground

Was this helpful? Yes No Suggest edit

3.Technical Specification

Parameter	Value	Unit
Basic Specification
Power supply voltage	12	V
Number of Positions	120
Number of Rows	2
Height above Board	8.84	mm
Pitch	0.50	mm
Mated Stacking Heights	5,8,11,14,16	mm
CONN RCPT 120POS SMD GOLD	3

Was this helpful? Yes No Suggest edit

4.Physical Dimensions

Was this helpful? Yes No Suggest edit

5.EagleCore SOM Carrier Reference Documents

Was this helpful? Yes No Suggest edit
